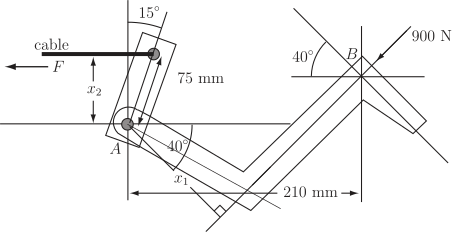

A diagram illustrating the force and dimensional relationships in a brake pedal mechanism.

Alt text: A diagram illustrating the force and dimensional relationships in a brake pedal mechanism.

This description was generated by AI and has not been verified by a human. If you spot an error, please use the feedback link below.

  • The diagram shows a mechanical arrangement related to a brake pedal, labeled with points A and B.
  • A force, labeled \(F\), is shown acting on the cable, pulling horizontally to the left from point A.
  • The angle \(15\) degrees is indicated near the point where the cable connects to the mechanism at A.
  • A vertical dimension of \(75\) millimeters is marked below point A.
  • A force of \(900\) newtons is shown acting at point B, directed downwards and slightly to the left.
  • Several angles are marked: \(40\) degrees at point A, and \(40\) degrees at point B, related to the inclined components.
  • Horizontal and vertical distances are labeled: \(x_2\) is the horizontal distance related to the force \(F\), \(x_1\) is the horizontal distance shown near point A, and a total horizontal distance of \(210\) millimeters is marked between the connection points of the components.
